Category:

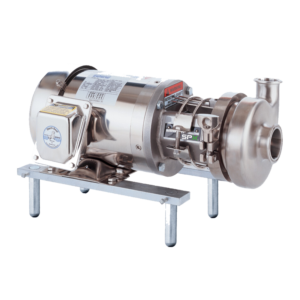

Monoblock centrifugal pumps

TECHNICAL FEATURES
• Available with various special sealing systems
• Impeller hydraulically balanced to prevent axial thrusts against the seal, it achieves
80% efficiency.
• Made of stainless steel AISI 304
• Back pull-out design : it allows removal of the motor, the coupling, the cantilever
support and the impeller without compromising the housing of the pump body or removing the pipes.

[mkdf_button size=”” type=”” text=”Brochure General” custom_class=”” icon_pack=”font_awesome” fa_icon=”” link=”https://inducom.us/wp-content/uploads/2020/12/Ebara_Pumps_Price_List_202020…pdf” target=”_self” color=”” hover_color=”” background_color=”” hover_background_color=”” border_color=”” hover_border_color=”” font_size=”” font_weight=”” margin=””]


LIQUID TEMPERATURE RANGE
from -10°C to + 90°C for the standard version
from -20°C to + 120°C for the special versions

MAXIMUM WORKING PRESSURE
10 bar

MATERIALS AVAILABLE
Stainless steel AISI 304 for 3 SERIES
Stainless steel AISI 316 for 3L SERIES
Micro-cast stainless steel AISI 316 for the 3L SERIES 65-250, 3L SERIES 80

REGULATION
It complies with regulations ErP 547/2012 (index MEI > 0.4), 640/2009 (motors in IE3 efficiency class) EN 733

"Z version" : with adjustable foot
