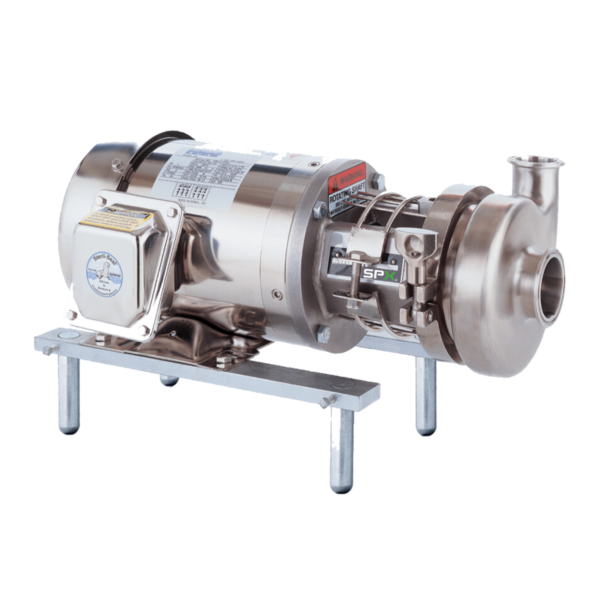

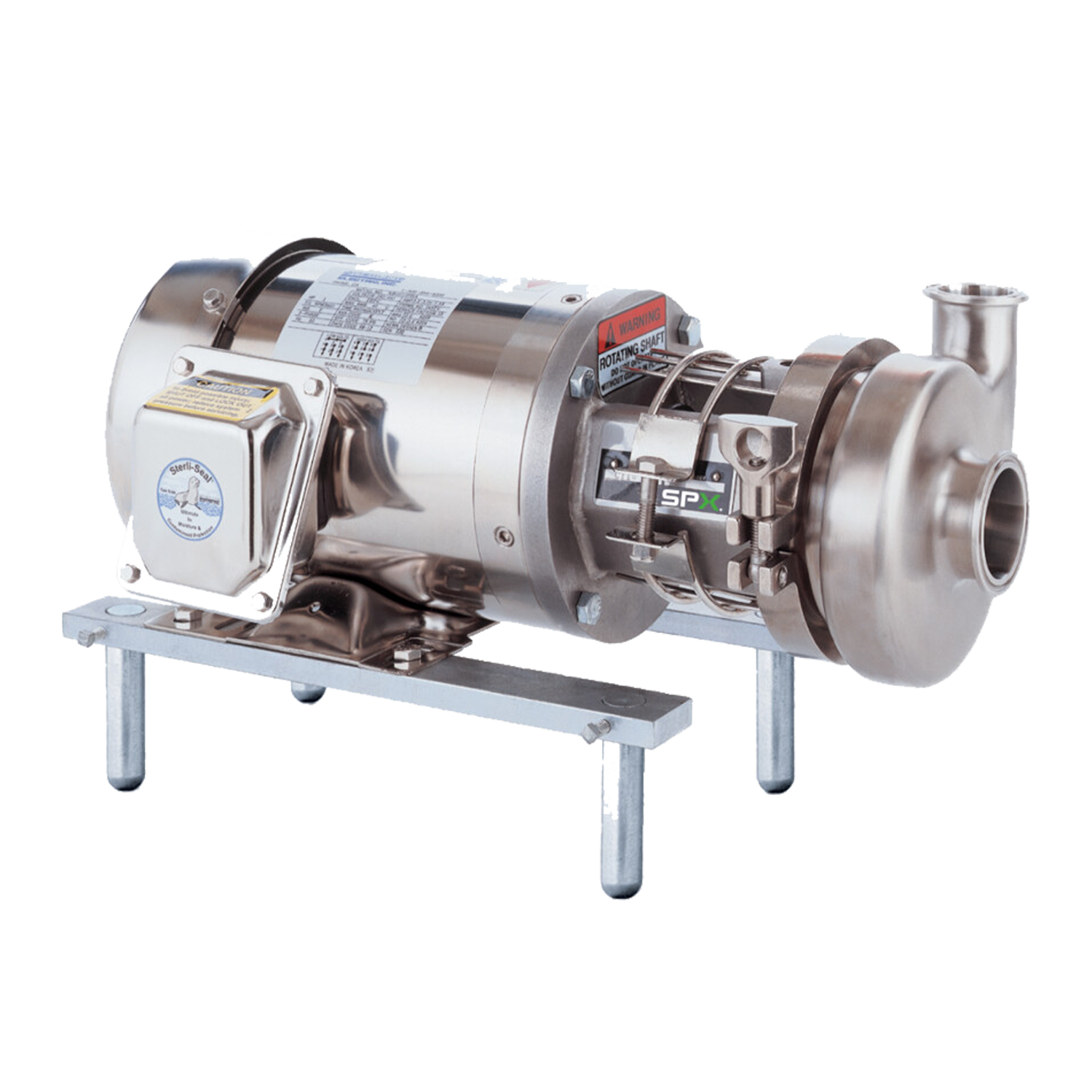

Centrifugal Pumps

Versatile Waukesha C-Series Centrifugal Pumps from Waukesha Cherry-Burrell find broad application throughout sanitary and industrial processes. These rugged pumps accommodate a wide range of solids and liquids under a variety of flow conditions and deliver long service with minimum downtime.

[mkdf_button size=”” type=”” text=”Brochure General” custom_class=”” icon_pack=”font_awesome” fa_icon=”” link=”” target=”_self” color=”” hover_color=”” background_color=”” hover_background_color=”” border_color=”” hover_border_color=”” font_size=”” font_weight=”” margin=””]

This pump offers strong performance and competitive price/value within the lower spectrum of heavy-duty, centrifugal pump applications. It can be installed in a series without fear of seal failure from elevated inlet pressures, even with viscous products.

  • Hydraulic balancing reduces pressure at sealing surface for less wear, greater efficiency
  • Easy-cleaning, open type impeller delivers smooth pumping performance
  • Enlarged inlets available for larger suction lines
  • Standard CIP capability
  • Pump and parts are interchangeable with other C-Series brands
  • Long-life backplate and adapters - both backplate (with O-ring) and adapters are machined from solid bar stock stainless steel for optimum casing seal life and corrosion resistance.
  • Long-life components — all “wet end” components are 316L stainless steel.
  • 3-A and CE certified

Design Features:

  • 304 stainless steel adapters - standard, eliminate the rust, corrosion and chipping paint of conventional carbon steel adapters.
  • Longer seal life - wave spring provides more uniform loading on seal face than single coil spring; hydraulic balancing reduces sealing surface pressures for less wear and less downtime.
  • Fast, easy take down - no tools required; quick-opening, heavy-duty cast clamp secures casing; impeller pin retained by centrifugal force.
  • Tested performance - every pump passes strict testing before release for shipping.
  • Casing matches job - choose from standard or enlarged inlet with port connection that meets your piping system.
  • CIP capability - grooves in impeller/shaft routes CIP chemical solutions to all critical areas for clean-in-place.
